Bevelled Crimp Neck Vial ND20 5,0 ml 38,2 x 22 mm Clear

Bevelled Crimp Neck Vial ND20 5,0 ml 38,2 x 22 mm Clear

  • 5ml Headspace-Vial, 38.2 x 22mm, clear glass, 1st hydrolytic class, rounded bottom

  • Artikelnummer: 20090342

  • Antal/fp: 100

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

5ml Headspace-Vial, 38.2 x 22mm, clear glass, 1st hydrolytic class, rounded bottom

- IMPORTANT SAFETY TIP: As Headspace vials have to withstand high internal pressure, almost all vials on the next page have a wall thickness of 1.2mm. Thus it is guaranteed that the vial will not burst. Contrary to a widely spread opinion, the seal and not the vial represents the weakest part of the whole sytem. Under pressure the septa will bulge against the Aluminum cap with such a force that the cap is torn apart. By own testing we varified that e.g. our PerkinElmer vial 20 09 0297 can easily withstand 10 bars or more while the seal is torn apart at around 10 bars when no pressure release system – like our Headspace Cap – is used.
- Rounded or flat bottom? A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process. Furthermore the vial slides more easily into the heating block when being transported by a magnet. A flat bottom might be necessary when vials have to run within the instrument on a slightly downwards tendency.
  • TEKNISK SPECIFIKATION
  • Tillverkare
    Thermo Scientific
  • Leveranstid (arb.dgr)
    10-30
  • Lager-/beställningsvara
    Beställningsvara
  • Volym (ml)
    5 ml
  • Typ av vial
    Bevelled Crimp Neck Vial
  • Dimension (mm)
    38,2 x 22 mm
  • Neck Type
    Bevelled Crimp Neck
  • Gänga
    No
  • Vialmaterial
    glass
  • Vialfärg
    Clear
  • Vialdesign
    rounded bottom
  • Vialdesign 2
    No
  • Skrivyta
    No
  • CleanPack
    Yes
  • Certifierad
    No
  • Usable Volume (ml)
    5,0 ml
  • Residual Vol (µl)
    <800 µl
  • Min. Working Volume (µl)
    1,5 ml
  • Total Filling Volume (ml)
    9,4 ml
  • Glasmaterial
    1. hydrol. Class
  • Insert-material
    No
  • Insert-profil
    No
  • Insert-färg
    No
  • Vial Finnish Diameter (mm)
    20 mm
  • Nominell diameter
    ND20
  • Vialkategori
    No
  • Applikationsområde
    Headspace
  • Typ av förpackning
    PP-Box
  • Typ av produkt
    Vial
  • UNSPSC-kod
    41121806
  • Tullstatnr
    70172000
Main Catalog Vials and Closures
Relaterade produkter

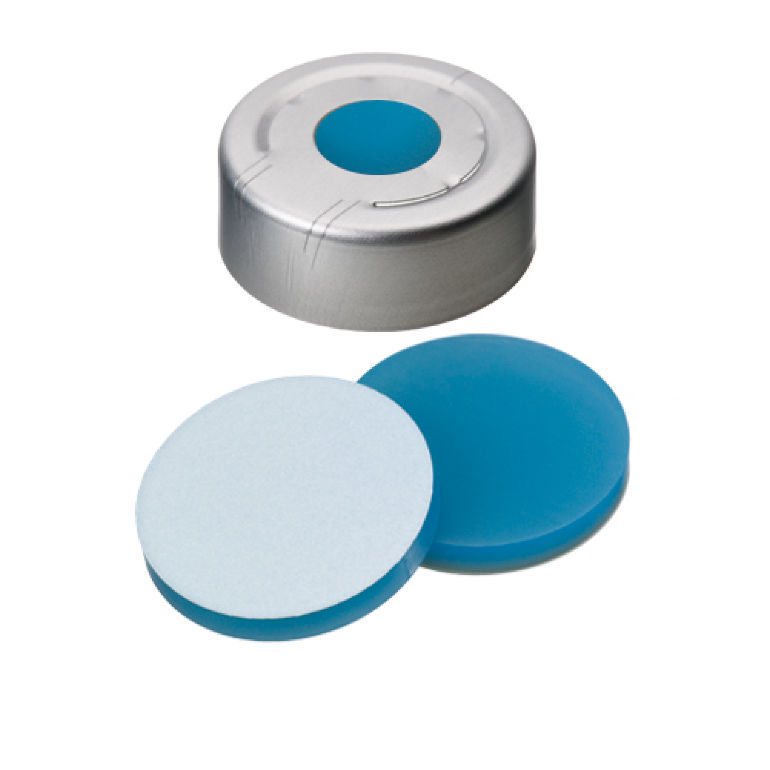

Crimp Cap (Clear lacquered) 20 mm, Silicone/PTFE Septa
Art.nr. 20030163 Beställningsvara

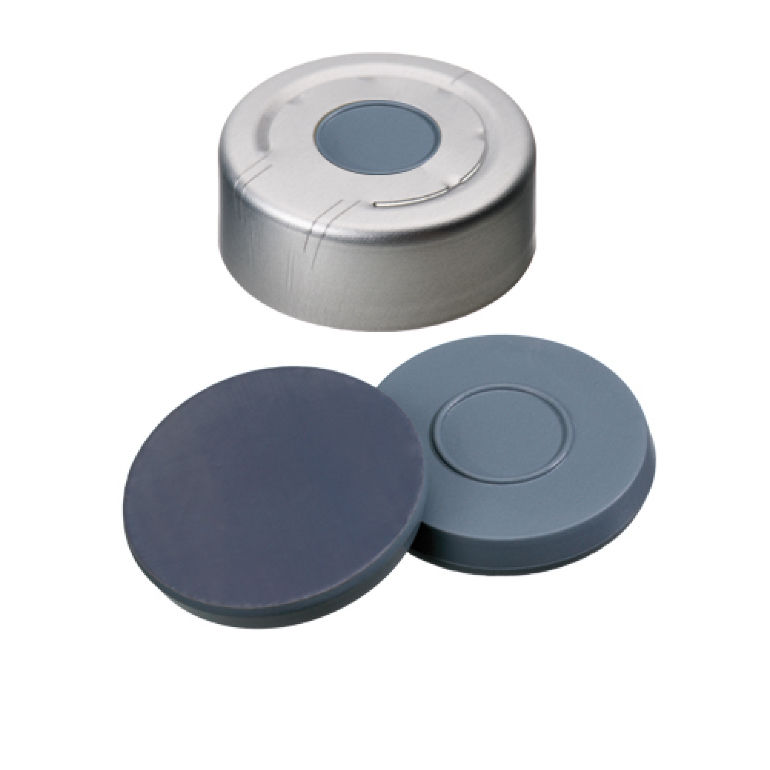

Crimp Cap (Clear lacquered) 20 mm, Bromo-Butyl/PTFE Septa
