Stainless Steel Fitting UHPLC Connection System

Stainless Steel Fitting UHPLC Connection System

  • MarvelXACT™ Stainless Steel 125µm ID x 350mm Length

  • Artikelnummer: UPFS-7125350

  • Antal/fp: 1

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

MarvelXACT™ UHPLC Connection Systems

Trouble-Free UHPLC Connections for Exact Performance Every Time

Ensure a perfect connection every time with our new MarvelXACT fitting system for trouble-free liquid chromatography. Our MarvelXACT connection systems have been expertly designed to eliminate the risk of under- or over-tightening with our patented torque limiting mechanism. This unique feature emits a haptic "click" feedback when it reaches the optimum torque, assuring a perfect installation every time. MarvelXACT incorporates our advanced MarvelX™ Sealing Technology to deliver precise face sealing (sealing at the port bottom), which eliminates additional internal volume, and minimizes carryover risk, peak tailing, and peak broadening.

Advantages of MarvelXACT UHPLC Connection Systems:
- No risk of under or over-tightening with torque limiting mechanism
- Face sealing ensures Zero Dead Volume
- Minimize carryover, peak broadening, and peak tailing
- Finger-tight to 19,000 psi
- 100+ connects and disconnects
- No training or instructions needed to make a perfect connection everytime
- Flexible 1/32" OD tubing for easy routing through the instrument
- Universal for 10-32 (1/16") coned receiving ports
- Biocompatible PEEK flow path option as well as stainless steel flow path options
  • TEKNISK SPECIFIKATION
  • Tillverkare
    IDEX
  • Leveranstid
    14
  • Lager-/beställningsvara
    Beställningsvara
  • Brand/märke
    MarvelXACT™
  • Produkttyp 1
    Fitting
  • Produkttyp 2
    UHPLC Connection System
  • Ytterdiameter slang
    No
  • Portkonfiguration
    No
  • Material
    Stainless Steel
  • Typ av slang
    1/32''OD Flexible 316 Stainless Steel with 1/16'' OD rigid tube ends
  • Skruvhuvud
    No
  • Färg
    No
  • Åtdragnings-moment
    No
  • Längd
    35 cm
  • Design
    No
  • Material i kontakt
    PEEK and 316 Stainless Steel
  • Diameter
    No
  • Sleeve innerdiameter
    No
  • Sleeve ytterdiameter
    -
  • Inner-diameter
    125 µm
  • Slangens innerdiameter
    125 µm (0.005 in)
  • Max tryck
    1310 bar (19000 psi)
  • Max temperatur
    120
  • Max tryck (bar)
    No
  • Vid installation
    1/8 of a turn (45 degree angle) after the initial resistance
  • Passar till
    10-32 threaded torque limiting fittings
  • Tullstatnr
    No
  • UNSPSC-kod
    No
IDEX - MarvelXACT.pdf
IDEX - Finger-Tight MarvelX UHPLC Fittings
IDEX - Health & Science Catalog - Laboratory Applications
IDEX - Technical Resources
IDEX - Microfluidic Connections
IDEX - The Application of High-Pressure Connectors in UHPLC
IDEX - All About Fittings
Nya produkter
YMC-Triart Capillary Column, C18 ExRS, 3 µm, 100 mm x 100 µm
Art.nr. TAR08S03-10F0AU Beställningsvara
17 gauge, Kel-F Hub NDL, custom length (0.375 to 12 in), point style 5 or AS
Art.nr. 7752-08 Beställningsvara
YMC-Pack Capillary Column, Phenyl, 3 µm, 50 mm x 100 µm
Art.nr. PH12S03-05F0AU Beställningsvara
OPTIMA Fused Silica GC Column 5 ID: 0.53 mm, 1.0 µm, 25 m
Art.nr. 726541.25 Beställningsvara
Micro-Volume High Flow BPR 100 psi
Art.nr. M-420 Beställningsvara
NUCLEOGEL Guard Cartridge, Sugar 810-H, 30 mm x 4.0 mm
Art.nr. 719575 Beställningsvara

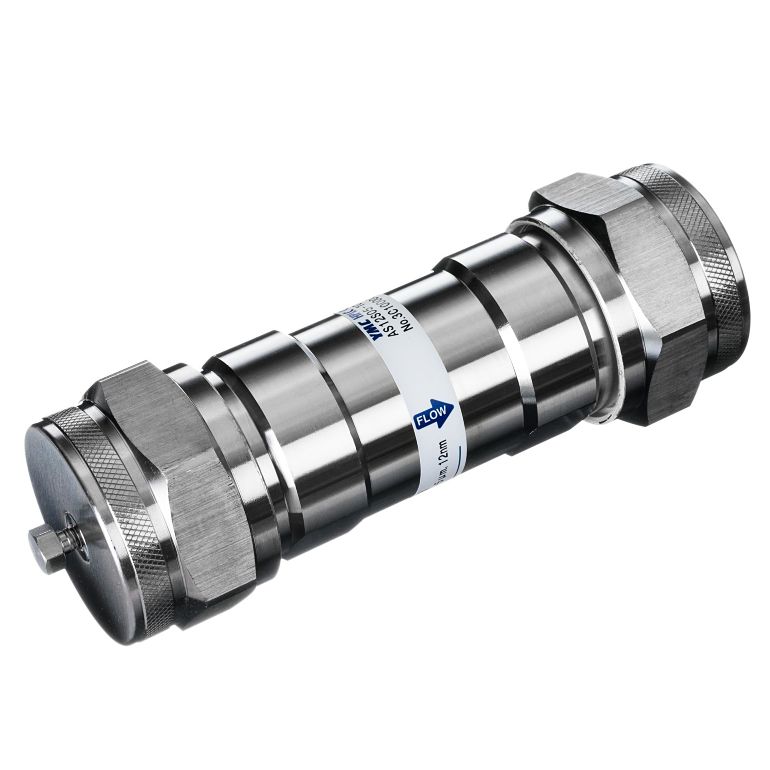

YMC-Pack Semi-preparative Column, C8, 5 µm, 50 mm x 20.0 mm
