YMC Pilot Glass Column, AB, 200 mm ID, 70-435 mm, 2.2-13.7 L, 5 bar, 10 µm

YMC Pilot Glass Column, AB, 200 mm ID, 70-435 mm, 2.2-13.7 L, 5 bar, 10 µm

  • YMC Pilot Glass Column, AB-version, 200 mm ID, 70-435 mm Bed length, 2.2-13.7 liter volume, 5 bar pressure limit, 10 µm frit porosity

  • Artikelnummer: PI200/500V0E-AB

  • Antal/fp: 1

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

YMC Glass Columns

Pilot and Production Scale:
Pilot and PilotPLUS Glass Columns

Pilot columns are designed for use in pilot and production scale applications with organic solvents (version SR) or aqueous buffers (version AB), which makes them applicable for all common methods in chromatography including normal phase, reversed phase or bio-chromatography. High precision CNC manufacturing of plungers and distribution plates provides outstanding flow distribution for a linear flow distribution profile. Precise and reliable bed height adjustment is achieved by hand wheel adjusters on the plunger. Versatility of mounting includes fixed stand, wheeled trolley or direct into plant.

High precision CNC manufacturing of plungers and distribution plates provides outstanding flow distribution for a linear flow distribution profile. Precise and reliable bed height adjustment can be achieved by hand wheel adjusters on the plunger. All materials are in compliance with FDA regulations; certification and full documentation are available for validation purposes on

All materials are in compliance with FDA regulations. Certification and full documentation is available for validation purposes. The use of borosilicate glass and a completely metal-free construction guarantees top hygiene standards (no un-rinsed areas, no dead volumes).

Features:
• Biocompatible
• Solvent resistant version (optional)
• Height adjustable plunger
• Heating / cooling jackets available (optional)
• Custom tailored for each application
• Explosion proof and rotatable version and other customised features available on request
• Full documentation for validation
• Full service and support for custom designed columns

Applications:
• Gel permeation
• Ion exchange
• Hydrophobic interaction
• Affinity
• Reversed phase
• Normal phase

Areas of application:
• AB Series columns are suitable for use with salts and detergents, ethanol and methanol, 6M urea, 7M guanidinium chloride, 2M NaCl and 3M ammonium sulphate.
• SR Series columns lend themselves to chromatography with silica gels and reversed phase materials as well as chiral stationary phases, which allows the use of solvents such as methylene chloride, acetone, toluene, THF etc.

YMC PilotPLUS is the new standard for your pilot scale applications. It is completely biocompatible and characterised by safe and easy handling. Packing, operating and unpacking the column is a smooth procedure due to a number of significant advantages.
• The unique sealing principle provides permanent sealing and extremely small dead areas.
• The innovative drain function makes piston assembly fast and clean.
• Due to the removable column body, unpacking and cleaning of the column is easily performed.

Features:
• Unique Sealing Principle
• Easy Piston Adjustment
• Safe and Easy Handling
• Removable Column Body
  • TEKNISK SPECIFIKATION
  • Tillverkare
    YMC
  • Leveranstid
    7-21
  • Lager-/beställningsvara
    Beställningsvara
  • Brand/märke
    YMC Pilot
  • Innerdiameter
    200 mm
  • Bäddlängd
    70-435 mm
  • Maxlängd
    435 mm
  • Volym
    2.2-13.7 liter
  • Fritporositet
    10 µm
  • Pistonger
    No
  • Version
    AB (Aqueous Buffer)
  • Värme/Kyla
    Optional
  • Temperaturområde (°C)
    No
  • Maxtryck
    5 bar
  • Material i kontakt
    Borosilicate glass 3.3, EPDM, PVDF, PE, FEP and PEEK
  • Material
    Polyethylene
  • Material O-ring
    EPDM
  • Material Pistong
    No
  • Anslutningar
    FEP tubing O.D. ¼“
  • Justering bäddlängd
    Height adjustable plunger
Brochure Pilot Column
Manual ECO Plus
Glass Column Overview
Nya produkter
NUCLEODUR HPLC Column, C18 Gravity, 3 µm, 100 mm x 4.6 mm
Art.nr. 760084.46 Beställningsvara
YMC CHIRAL ART Cellulose-SB HPLC Column, Immobilised Cellulose, 3 µm, 150 mm x 2.0 mm
Art.nr. KSB99S03-1502WT Beställningsvara
YMC-Triart HPLC Column, C8, 3 µm, 150 mm x 2.0 mm
Art.nr. TO12S03-1502WT Beställningsvara
ECO Glass Column, SR, 15 mm ID, 80-200 mm, 14-32 ml, 25 bar, 10-16 µm
Art.nr. ECO15/200V0K
Redo för leverans
Screw Neck Vial|Short Thread Vial ND9 1,5 ml 32 x 11.6 mm Amber
Art.nr. 11191516
Redo för leverans
ECOPLUS Glass Column, SR, 25 mm ID, 30-125 mm, 15-60 ml, 50 bar, 10 µm
Art.nr. TAC25/125S0-SR-2
Redo för leverans

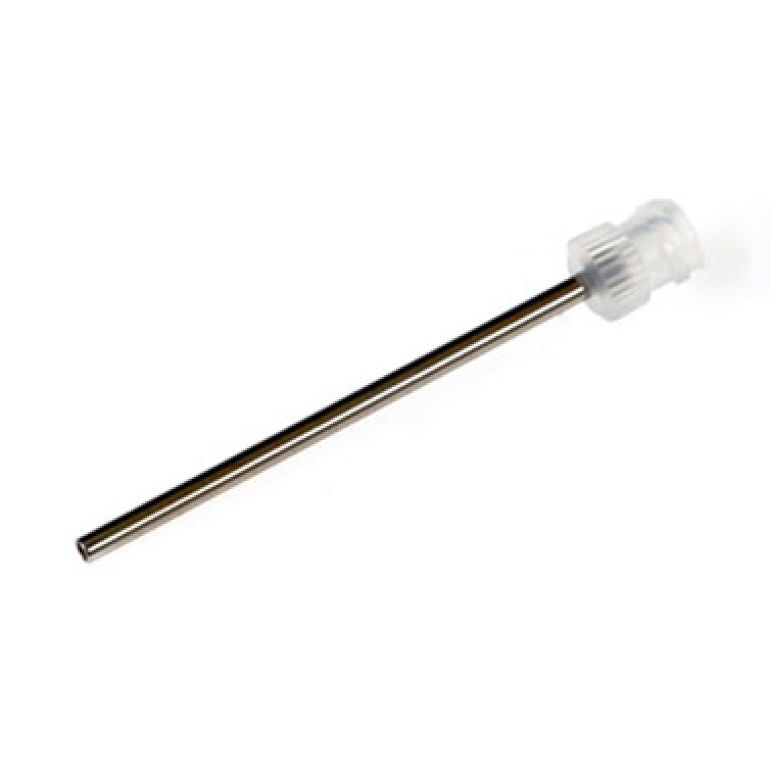

29 gauge, Kel-F Hub NDL, custom length (0.375 to 12 in), point style 2, 3, or 4
