ECOPLUS Glass Column, AB, 35 mm ID, 250-500 mm, 245-480 ml, 40 bar, 10 µm

ECOPLUS Glass Column, AB, 35 mm ID, 250-500 mm, 245-480 ml, 40 bar, 10 µm

  • ECOPLUS glass column, AB-version, type 2 long pistons, 35 mm ID, 250-500 mm bed length, 245-480 ml volume, 40 bar pressure limit, 10 µm frit porosity

  • Artikelnummer: TAC35/500LPE0-AB-2

  • Antal/fp: 1

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

YMC Glass Columns
Biochromatography is widely used for highperformance downstream processing techniques for a wide range of compounds, including proteins, peptides or nucleic acids. When using various chromatographic techniques such as ion exchange, affinity or gel permeation chromatography, high-performance separation media are increasingly used and, as a result, higher demands are made on the quality of the column hardware.

Laboratory Scale:
ECO and ECOPlus Glass Columns

ECOPlus columns meet the highest criteria for professional laboratory use. Particular attention has been paid to the column volume ranges and the pressure resistance, so that high flow rates, performance and efficiency can be achieved.
• First choice for high pressure application (preparative HPLC)
• Pressure limit: 15–80 bar
• Columns with 5 mm ID available
• Compatible with any LC system
• For all types of silica and soft gels
• Aqueous buffers and organic solvents
• Temperature range 4 - 40 °C (AB) or 16 – 40 °C (SR)
• Easy self packing

ECOPlus columns are multi-purpose columns for all types of liquid chromatography applications even with high operating pressures. The columns are available in two versions:
1. Aqueous buffer version (AB):
For applications with aqueous buffers
2. Solvent resistant version (SR):
For applications with organic solvents

Three different combinations of pistons are available for a wide range of bed lengths and volumes. The solvent resistant pistons are equipped with Teflon chevrons for sealing, the AB versions with O-rings.

ECOPlus columns are suitable for the entire spectrum of normal phase and reversed phase chromatography as well as biochromatography. All columns are produced in the YMC Europe facilities in Germany. The high pressure resistance is guaranteed by a special construction of the column including the locking system (Quick-Lock). The high-quality columns are made using high precision CNC machines and undergo several rigorous quality controls before they are delivered.

What is the difference between Vario and Multivario options?
Adjustable and non-adjustable (fixed) pistons are available for the ECO columns.
Two different options are available for combining these two pistons:
1. Vario: One adjustable and one fixed piston
2. Multivario: Two adjustable pistons
The selection of the option depends on the required ranges of bed lengths and column volumes.
  • TEKNISK SPECIFIKATION
  • Tillverkare
    YMC
  • Leveranstid
    7-21
  • Lager-/beställningsvara
    Beställningsvara
  • Brand/märke
    YMC ECO
  • Innerdiameter
    35 mm
  • Bäddlängd
    250-500 mm
  • Maxlängd
    500 mm
  • Volym
    245-480 ml
  • Fritporositet
    10 µm
  • Pistonger
    2 long pistons
  • Version
    AB (Aqueous Buffer)
  • Värme/Kyla
    No
  • Temperaturområde (°C)
    No
  • Maxtryck
    40 bar
  • Material i kontakt
    PE pistons, PE frits, EPDM O-ring, KPG borosilicate glass 3.3 body
  • Material
    Polyethylene
  • Material O-ring
    EPDM
  • Material Pistong
    Polyethylene
  • Anslutningar
    ¼” – 28 fittings (four for 1/16” or four for 1/8” capillaries). The column is supplied with two M6 adaptors to allow direct connection to any LC-system.
  • Justering bäddlängd
    Multi-variable plunger at each end, each providing approximately 60mm bed height adjustment with “Quick-Lock” bayonet system (long plunger option provides approximately 120mm bed adjustment for either or both ends)
Manual ECO Plus
Glass Column Overview
Nya produkter
YMC-Triart Bio Capillary Column, C18, 3 µm, 50 mm x 300 µm
Art.nr. TA30S03-05H0RU Beställningsvara
ECO Glass Column, SR, 25 mm ID, 330-450 mm, 190-230 ml, 15 bar, 10-16 µm
Art.nr. ECO25/450V0K Beställningsvara
YMC-Pack Guard Cartridge, C18, 5 µm, 10 mm x 10.0 mm
Art.nr. AL12S05-0110CC Beställningsvara
Analytical Guard Cartridge, Quick-Seal™, 2.1 mm ID x 2.0cm, Frit 0.5µm
Art.nr. 9104-05QSA Beställningsvara
Snap Ring Cap (Transparent) 22 mm, Silicone/PTFE Septa
Art.nr. 22151869 Beställningsvara
YMC-Pack Cartridge Column, C18, 5 µm, 150 mm x 4.0 mm
Art.nr. AA30S05-1504QC Beställningsvara
YMC-Pack Capillary Column, NH2, 3 µm, 150 mm x 500 µm
Art.nr. NH12S03-15J0RU Beställningsvara

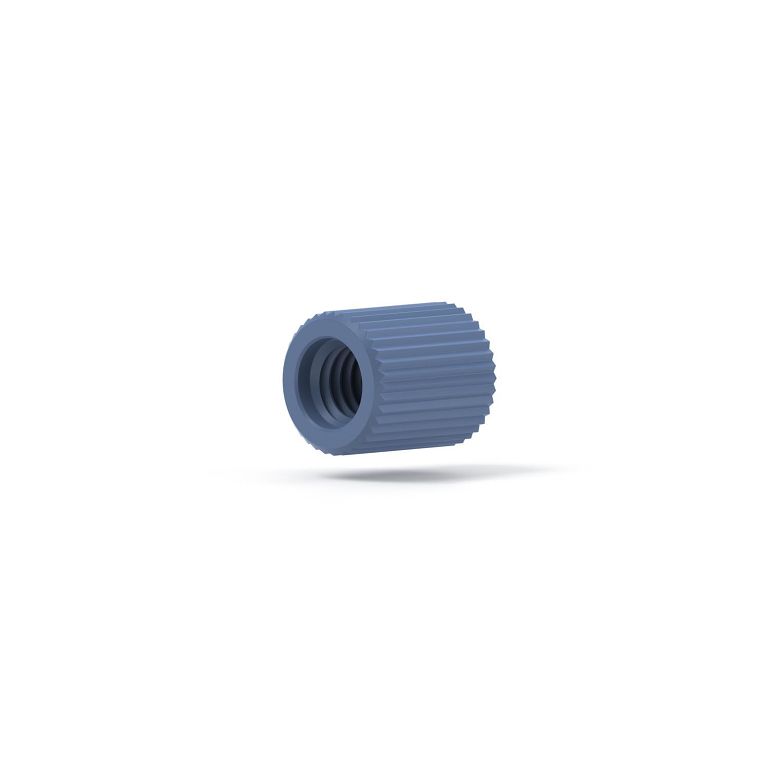

Fittings Kit Fittings Kit Hitachi Type
