ECO Glass Column, SR, 10 mm ID, 80-200 mm, 7-15 ml, 30 bar, 10-16 µm

ECO Glass Column, SR, 10 mm ID, 80-200 mm, 7-15 ml, 30 bar, 10-16 µm

  • ECO glass column, SR-version, type 1 short / 1 long piston (Vario), 10 mm ID, 80-200 mm bed length, 7-15 ml volume, 30 bar pressure limit, 10-16 µm frit porosity

  • Artikelnummer: ECO10/200V0K

  • Antal/fp: 1

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

YMC Glass Columns
Biochromatography is widely used for highperformance downstream processing techniques for a wide range of compounds, including proteins, peptides or nucleic acids. When using various chromatographic techniques such as ion exchange, affinity or gel permeation chromatography, high-performance separation media are increasingly used and, as a result, higher demands are made on the quality of the column hardware.

Laboratory Scale:
ECO and ECOPlus Glass Columns

ECO columns are glass columns for use with almost all types of soft gels and medium pressure liquid chromatography applications. A heating/cooling jacket option can be supplied on request.
• First choice for medium pressure liquid chromatography (MPLC)
• Pressure limit 5–30 bar
• Heating/cooling jacket available
• 70 and 80 mm ID columns with column stands available
• Compatible with any LC system
• For all types of silica and soft gels
• Aqueous buffers and solvents
• Temperature range 4–40°C
• Easy self-packing

ECO columns are glass columns suitable for all types of soft gel and medium pressure (pressure limit 5 – 30 bar) liquid chromatography applications. With a choice of one or two adjustable length pistons, they are available in two versions: AB (aqueous buffer) for use with aqueous buffers and cold room applications and SR (solvent resistant) for all forms of normal and reversed phase chromatography. ECO columns are produced using high-precision CNC manufacturing. They are competitively priced and equipped with a screw-lock system which makes it possible to open and seal the column simply and quickly. Each column passes a quality control pressure test. A water-jacketed option can be supplied on request.

What is the difference between Vario and Multivario options?
Adjustable and non-adjustable (fixed) pistons are available for the ECO columns.
Two different options are available for combining these two pistons:
1. Vario: One adjustable and one fixed piston
2. Multivario: Two adjustable pistons
The selection of the option depends on the required ranges of bed lengths and column volumes.
  • TEKNISK SPECIFIKATION
  • Tillverkare
    YMC
  • Leveranstid
    7-21
  • Lager-/beställningsvara
    Beställningsvara
  • Brand/märke
    YMC ECO
  • Innerdiameter
    10 mm
  • Bäddlängd
    80-200 mm
  • Maxlängd
    200 mm
  • Volym
    7-15 ml
  • Fritporositet
    10-16 µm
  • Pistonger
    1 short/1 long piston (Vario)
  • Version
    SR (Solvent Resistent)
  • Värme/Kyla
    No
  • Temperaturområde (°C)
    No
  • Maxtryck
    30 bar
  • Material i kontakt
    PVDF pistons, glass frits, Kalrez® O-ring, borosilicate glass body
  • Material
    Glass
  • Material O-ring
    Kalrez®
  • Material Pistong
    PVDF
  • Anslutningar
    The columns are supplied with different adapters to allow direct connection to any LC-system (e.g. ÄKTA sytem)
  • Justering bäddlängd
    Multi-variable plunger at each end, each providing approximately 60mm bed height adjustment with “Quick-Lock” bayonet system (long plunger option provides approximately 120mm bed adjustment for either or both ends)
Manual ECO
Glass Column Overview
Nya produkter
EXP Stem Trap Kit, RP-Amide, x
Art.nr. 15-04003-HE Beställningsvara
YMC-Triart Bio UHPLC Column, C18, 1.9 µm, 75 mm x 2.0 mm
Art.nr. TA30SP9-L502PT Beställningsvara
Polyamine II Guard Cartridge, Polyamine, 5 µm, 10 mm x 10.0 mm
Art.nr. PB12S05-0110CC Beställningsvara
Acetonitrile HPLC Grade S, 2,5 liter
Art.nr. RH1016/2.5
Redo för leverans
PEEK/PCTFE Plug Plug or Cap Coned - 6-40
Art.nr. P-552 Beställningsvara
NUCLEODUR HPLC Column, C18 ec, 3 µm, 50 mm x 4.6 mm
Art.nr. 760050.46 Beställningsvara
CHROMABOND HR-XAW, SPE Column 6 ml 150 mg, 30/ PK
Art.nr. 730749 Beställningsvara

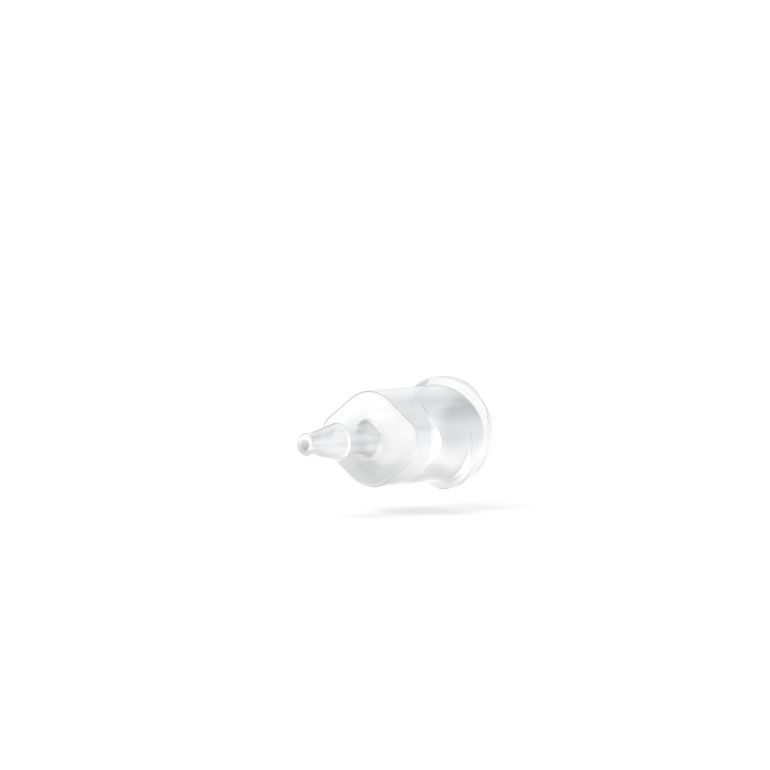

Adapter - Barbed to Male Luer Lock, Primary - Polypropylene, 1.25 mm (0.049'')
