ECO Glass Column, AB, 15 mm ID, 80-200 mm, 14-32 ml, 25 bar, 16-40 µm

ECO Glass Column, AB, 15 mm ID, 80-200 mm, 14-32 ml, 25 bar, 16-40 µm

  • ECO glass column, AB-version, type 1 short / 1 long piston (Vario), 15 mm ID, 80-200 mm bed length, 16-32 ml volume, 25 bar pressure limit, 16-40 µm frit porosity

  • Artikelnummer: ECO15/200V3V

  • Antal/fp: 1

Lägg till i favoritlista

Jämför

Du måste godkännas som kund hos Genetec för att använda den här funktionen

Beställningsvara

YMC Glass Columns
Biochromatography is widely used for highperformance downstream processing techniques for a wide range of compounds, including proteins, peptides or nucleic acids. When using various chromatographic techniques such as ion exchange, affinity or gel permeation chromatography, high-performance separation media are increasingly used and, as a result, higher demands are made on the quality of the column hardware.

Laboratory Scale:
ECO and ECOPlus Glass Columns

ECO columns are glass columns for use with almost all types of soft gels and medium pressure liquid chromatography applications. A heating/cooling jacket option can be supplied on request.
• First choice for medium pressure liquid chromatography (MPLC)
• Pressure limit 5–30 bar
• Heating/cooling jacket available
• 70 and 80 mm ID columns with column stands available
• Compatible with any LC system
• For all types of silica and soft gels
• Aqueous buffers and solvents
• Temperature range 4–40°C
• Easy self-packing

ECO columns are glass columns suitable for all types of soft gel and medium pressure (pressure limit 5 – 30 bar) liquid chromatography applications. With a choice of one or two adjustable length pistons, they are available in two versions: AB (aqueous buffer) for use with aqueous buffers and cold room applications and SR (solvent resistant) for all forms of normal and reversed phase chromatography. ECO columns are produced using high-precision CNC manufacturing. They are competitively priced and equipped with a screw-lock system which makes it possible to open and seal the column simply and quickly. Each column passes a quality control pressure test. A water-jacketed option can be supplied on request.

What is the difference between Vario and Multivario options?
Adjustable and non-adjustable (fixed) pistons are available for the ECO columns.
Two different options are available for combining these two pistons:
1. Vario: One adjustable and one fixed piston
2. Multivario: Two adjustable pistons
The selection of the option depends on the required ranges of bed lengths and column volumes.
  • TEKNISK SPECIFIKATION
  • Tillverkare
    YMC
  • Leveranstid
    7-21
  • Lager-/beställningsvara
    Beställningsvara
  • Brand/märke
    YMC ECO
  • Innerdiameter
    15 mm
  • Bäddlängd
    80-200 mm
  • Maxlängd
    200 mm
  • Volym
    14-32 ml
  • Fritporositet
    16-40 µm
  • Pistonger
    1 short/1 long piston (Vario)
  • Version
    AB (Aqueous Buffer)
  • Värme/Kyla
    No
  • Temperaturområde (°C)
    No
  • Maxtryck
    25 bar
  • Material i kontakt
    POM pistons, glass frits, Viton O-ring, borosilicate glass body
  • Material
    Glass
  • Material O-ring
    Viton
  • Material Pistong
    POM
  • Anslutningar
    The columns are supplied with different adapters to allow direct connection to any LC-system (e.g. ÄKTA sytem)
  • Justering bäddlängd
    Multi-variable plunger at each end, each providing approximately 60mm bed height adjustment with “Quick-Lock” bayonet system (long plunger option provides approximately 120mm bed adjustment for either or both ends)
Manual ECO
Glass Column Overview
Nya produkter
YMC-Pack Cartridge Column, C8, 3 µm, 125 mm x 3.0 mm
Art.nr. OC12S03-R503QT Beställningsvara
OPTI-MAX Inlet Cartridge Check Valve, 1/16'' Thermo
Art.nr. 50-46-01983 Beställningsvara

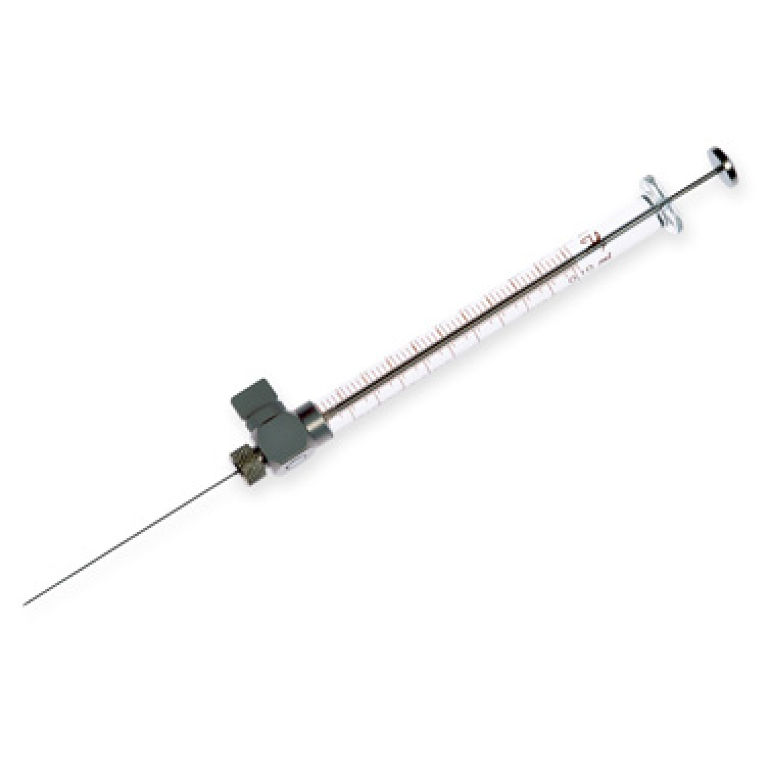

Manual HPLC Injection|HPLC Injection Valves Syringe 25 µl Cemented Needle (N) PST 3
