Screw Neck Vial|Precision Thread Vial ND18 8,0 ml 46 x 22,5 mm Clear

Screw Neck Vial|Precision Thread Vial ND18 8,0 ml 46 x 22,5 mm Clear

  • 10ml Precision Thread Headspace-Vial, 46 x 22.5mm, clear glass, 1st hydrolytic class, rounded bottom (for MAGNETIC screw caps)

  • PartNo: 18091306

  • Qty/pkg: 100

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

10ml Precision Thread Headspace-Vial, 46 x 22.5mm, clear glass, 1st hydrolytic class, rounded bottom (for MAGNETIC screw caps)

- IMPORTANT SAFETY TIP: As Headspace vials have to withstand high internal pressure, almost all vials on the next page have a wall thickness of 1.2mm. Thus it is guaranteed that the vial will not burst. Contrary to a widely spread opinion, the seal and not the vial represents the weakest part of the whole sytem. Under pressure the septa will bulge against the Aluminum cap with such a force that the cap is torn apart. By own testing we varified that e.g. our PerkinElmer vial 20 09 0297 can easily withstand 10 bars or more while the seal is torn apart at around 10 bars when no pressure release system – like our Headspace Cap – is used.
- Rounded or flat bottom? A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process. Furthermore the vial slides more easily into the heating block when being transported by a magnet. A flat bottom might be necessary when vials have to run within the instrument on a slightly downwards tendency.
- Screw Caps are a novelty in the crimp neck dominated Headspace area. However, they represent a ready to use, convenient solution, that does not require any additional tools (crimpers, decappers). Thus samples can be taken and sealed out in the field without the necessity of sample transfer later in the lab. The magnetic Screw Seals can be used universally for Headspace as
  • SPECIFICATION
  • Manufacturer
    No
  • Delivery Time (W.Days)
    10-30
  • Stock Type
    Beställningsvara
  • Volume (ml)
    10 ml
  • Vial Type
    Precision Thread Vial, Screw Neck Vial
  • Dimension (mm)
    46 x 22,5 mm
  • Neck Type
    Precision Thread ND18
  • Thread Type
    No
  • Vial Material
    glass
  • Vial Color
    Clear
  • Vial Design
    rounded bottom
  • Vial Design (2)
    No
  • Writing Area
    No
  • CleanPack
    Yes
  • Certified
    No
  • Usable Volume (ml)
    8,0 ml
  • Residual Vol (µl)
    <800 µl
  • Min. Working Volume (µl)
    1,5 ml
  • Total Filling Volume (ml)
    10,8 ml
  • Glass Material
    1. hydrol. Class
  • Insert Material
    No
  • Insert Profile
    No
  • Insert Color
    No
  • Vial Finnish Diameter (mm)
    18 mm
  • Nominal Diameter
    ND18
  • Vial Category
    No
  • Application
    Headspace
  • Packaged
    PP-Box
  • Product Type
    Vial
  • UNSPSC Code
    41121806
  • Tariff Code
    70172000
Main Catalog Vials and Closures
Related Products

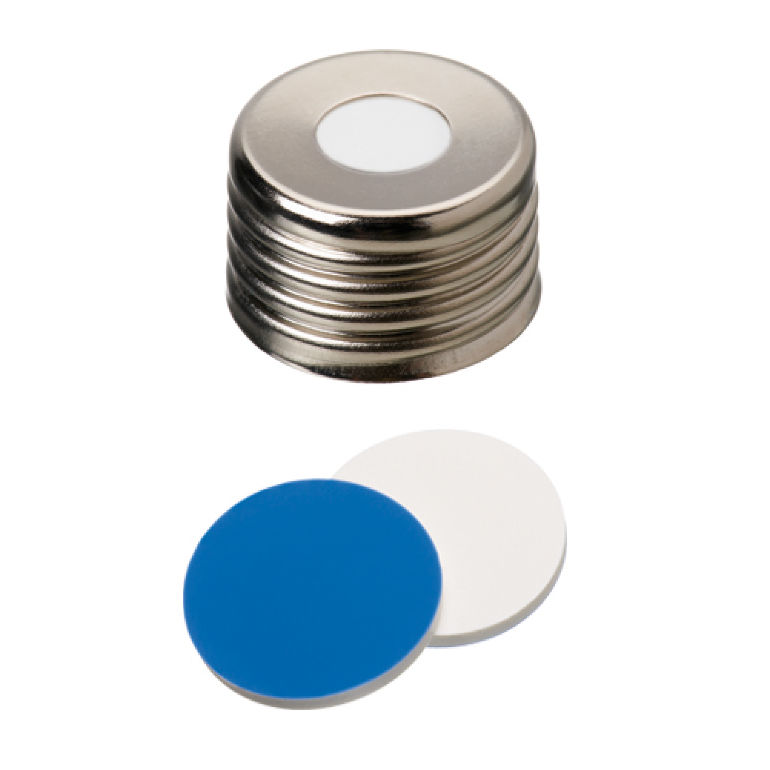

Screw Cap (Silver) 18 mm, Silicone/PTFE Septa
PartNo 18032063 Order Item
Screw Cap (Silver) 18 mm, Silicone/PTFE Septa
PartNo 18031414 Order Item

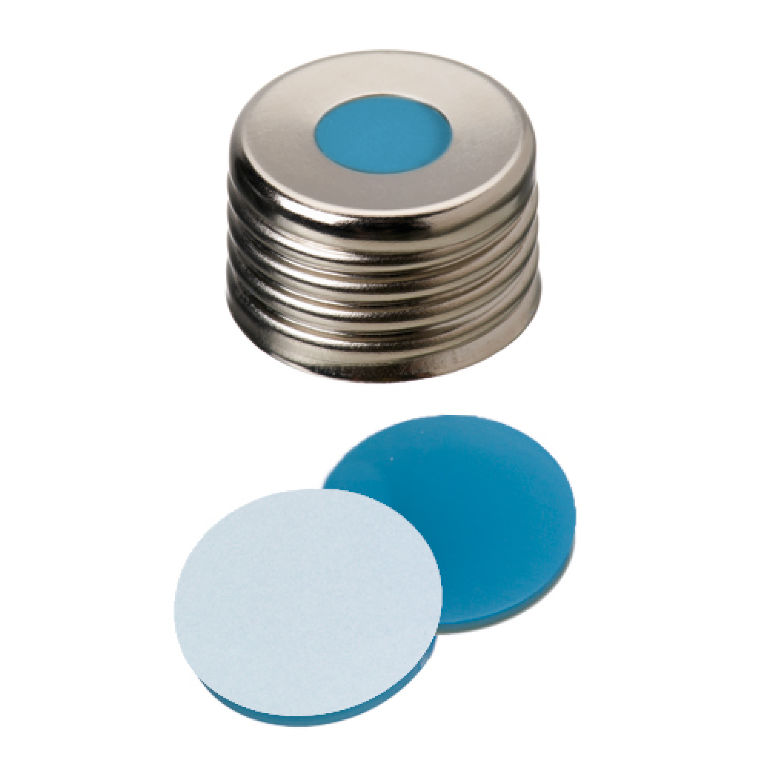

Screw Cap (Silver) 18 mm, Silicone/PTFE Septa
