Polymicro Technologies Synthetic fused silica with polyimide coating Capillary

Polymicro Technologies Synthetic fused silica with polyimide coating Capillary

  • Fused Silica Capillary with Polyimide Coating ID: 530µm OD: 660µm

  • PartNo: TSG530660

  • Qty/pkg: 1 meter

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

Delivering industry-leading performance including tight ID and OD tolerances, Polymicro Technologies™ polyimide coated TSP and high-temperature TSG capillary tubing ensures precise flow-rate control of liquids and gases for scientific, medical and industrial applications.

FEATURES AND BENEFITS

· Pure synthetic fused silica capillary - Mirror-smooth interior surfaces provide stable flow of liquids and gases. Low metal ion content creates an inert inner surface. Facilitates efficient cleaving or cutting for custom lengths of tubing
· Wide range of internal and external diameters with tight dimensional control - Enables design flexibility and operational efficiency. Superior dimensional stability over long lengths of tubing allows for different illumination volumes and flow rates. External diameters mate with existing fluidic connector technologies
· TSP and TSG polyimide coatings - Offer excellent abrasion resistance during handling and usage. Resist temperatures up to +350ºC for TSP; up to +400ºC for TSG. Allow product flexure with superior bend radius.
· Custom options available - Boost design efficiency. Provide small production values at reasonable costs. Ensure prototype methodology is directly scalable to high volume with minimal design costs

APPLICATIONS

Medical
- Precision Drug Delivery
- Flow Control Systems
- Clinical and Diagnostics Devices
- Wearable Drug Delivery Devices

Scientific
- Analytical Chemistry
- Chromatographic Techniques
- Micro- and Nano-Fluidics
- On-Column Monitoring
- Evanescence Based Sensing
- Coaxial Light and Fluidic Devices

Industrial
- Package Leak Testing
- Evaporative Cooling Systems
- Petroleum Analysis
- Catalytic Research
  • SPECIFICATION
  • Manufacturer
    Polymicro Technologies
  • Delivery Time
    7
  • Stock Type
    Beställningsvara
  • Product Type
    Capillary
  • Tubing ID
    530 µm (0,021'')
  • Tubing OD
    660 µm
  • Material
    Synthetic fused silica with polyimide coating
  • Operating Pressure Max
    360 bar (5200 psi)
  • Color
    Natural
  • Brand
    No
  • Max temperatur (C )
    400
  • Feature
    No
  • Unit
    meter
  • UNSPSC Code
    41115720
  • Tariff Code
    70023100
Polymide Coated Capillary Tubing.pdf
UV Transparent Capillary Tubing.pdf
Tight-Tolerance VS Capillary Tubing.pdf
New Products
EXP Guard Cartridge, Phenyl, 3 µm, 5 mm x 3.0 mm
PartNo 15-04106-HI Order Item
YMC-Triart HPLC Column, Phenyl, 3 µm, 33 mm x 4.6 mm
PartNo TPH12S03-H346PTH Order Item

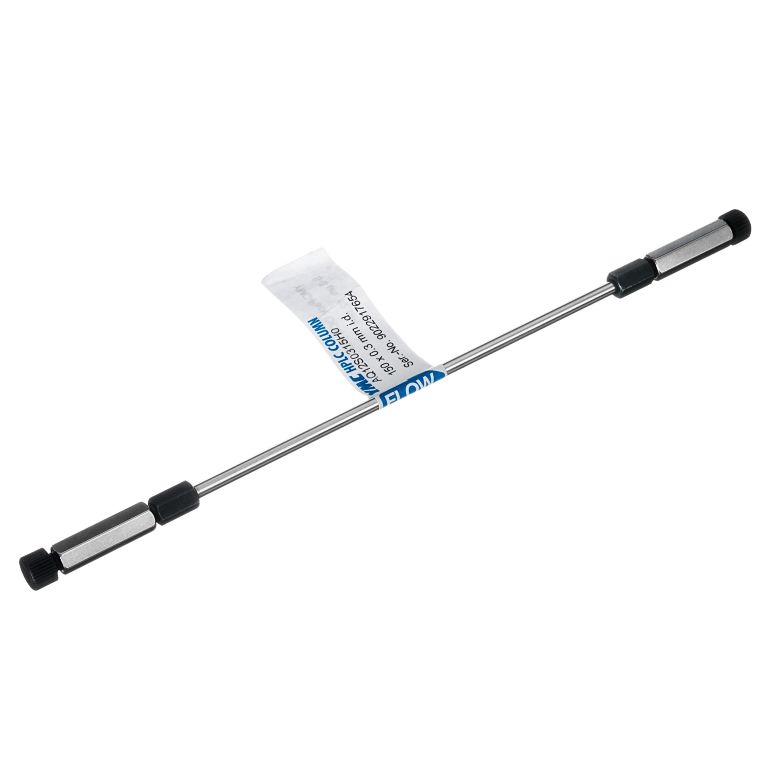

YMC-Triart Capillary Column, C18, 3 µm, 100 mm x 75 µm
