Crimp Neck Vial ND20 10,0 ml 46 x 22,5 mm Clear

Crimp Neck Vial ND20 10,0 ml 46 x 22,5 mm Clear

  • 10ml Headspace-Vial, 46 x 22.5mm, clear glass, 1st. hydrol. class, DIN-Crimp Neck, rounded bottom

  • PartNo: 20091405

  • Qty/pkg: 100

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

10ml Headspace-Vial, 46 x 22.5mm, clear glass, 1st. hydrol. class, DIN-Crimp Neck, rounded bottom

- IMPORTANT SAFETY TIP: As Headspace vials have to withstand high internal pressure, almost all vials on the next page have a wall thickness of 1.2mm. Thus it is guaranteed that the vial will not burst. Contrary to a widely spread opinion, the seal and not the vial represents the weakest part of the whole sytem. Under pressure the septa will bulge against the Aluminum cap with such a force that the cap is torn apart. By own testing we varified that e.g. our PerkinElmer vial 20 09 0297 can easily withstand 10 bars or more while the seal is torn apart at around 10 bars when no pressure release system – like our Headspace Cap – is used.
- Rounded or flat bottom? A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process. Furthermore the vial slides more easily into the heating block when being transported by a magnet. A flat bottom might be necessary when vials have to run within the instrument on a slightly downwards tendency.
  • SPECIFICATION
  • Manufacturer
    No
  • Delivery Time (W.Days)
    10-30
  • Stock Type
    Beställningsvara
  • Volume (ml)
    10 ml
  • Vial Type
    Crimp Neck Vial
  • Dimension (mm)
    46 x 22,5 mm
  • Neck Type
    DIN-Crimp Neck
  • Thread Type
    No
  • Vial Material
    glass
  • Vial Color
    Clear
  • Vial Design
    rounded bottom
  • Vial Design (2)
    No
  • Writing Area
    No
  • CleanPack
    Yes
  • Certified
    No
  • Usable Volume (ml)
    10,0 ml
  • Residual Vol (µl)
    <800 µl
  • Min. Working Volume (µl)
    1,5 ml
  • Total Filling Volume (ml)
    12,3 ml
  • Glass Material
    1. hydrol. Class
  • Insert Material
    No
  • Insert Profile
    No
  • Insert Color
    No
  • Vial Finnish Diameter (mm)
    20 mm
  • Nominal Diameter
    ND20
  • Vial Category
    No
  • Application
    Headspace
  • Packaged
    PP-Box
  • Product Type
    Vial
  • UNSPSC Code
    41121806
  • Tariff Code
    70172000
Main Catalog Vials and Closures
Related Products
Crimp Cap (Red lacquered) 20 mm, Silicone/PTFE Septa
PartNo 20031536 Order Item
Crimp Cap (Gold lacquered) 20 mm, Silicone/PTFE Septa
PartNo 20030975 Order Item
Crimp Cap (Clear lacquered) 20 mm, Silicone/PTFE Septa
PartNo 20030142
Ready for Delivery
New Products
YMC-PAH Capillary Column, PAH, 3 µm, 50 mm x 300 µm
PartNo YP99S03-05H0RU Order Item
YMC-Triart HPLC Column Metal Free, Diol, 3 µm, 50 mm x 2.1 mm
PartNo TDH12S03-05Q1PTP Order Item
YMC-Actus Chiral Semi-preparative Column, Coated Amylose, 10 µm, 250 mm x 30.0 mm
PartNo KAN99S11-2530WX Order Item
Crimp Neck Vial ND8 1,0 ml 40 x 8.2 mm Amber
PartNo 525-08091420 Order Item
ECOPLUS Glass Column, AB, 10 mm ID, 0-125 mm, 0-9.8 ml, 80 bar, 10 µm
PartNo TAC10/125SLPE0-AB-2 Order Item
Accessory Holder with Tubing Management System
PartNo 61710-01 Order Item
ECOPLUS Glass Column, SR, 50 mm ID, 0-250 mm, 0-490 ml, 15 bar, 10 µm
PartNo TAC50/250LS0-SR-NK Order Item

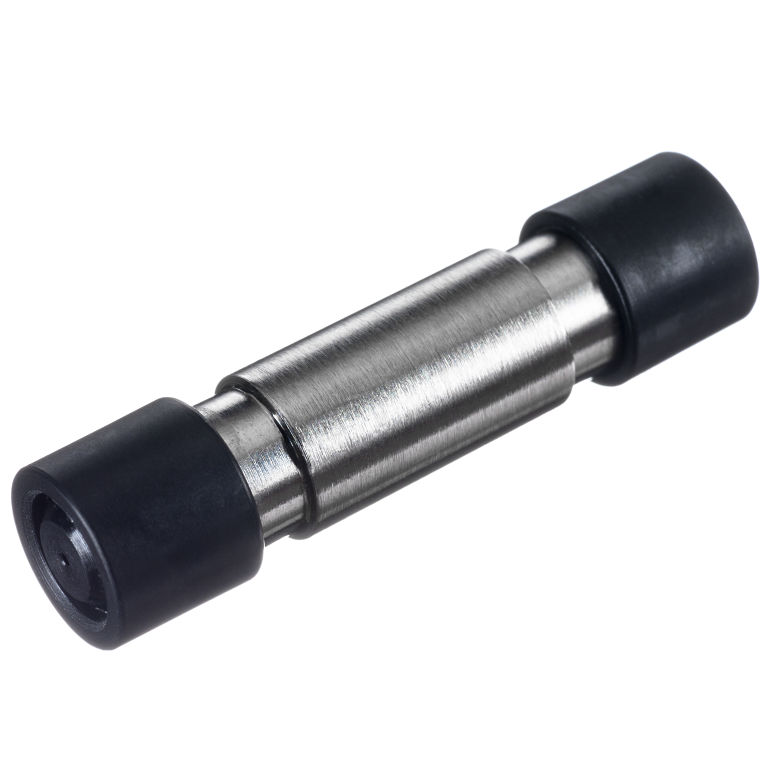

YMC-Pack Guard Cartridge, C8, 3 µm, 10 mm x 3.0 mm
