18 Gauge Dispense Tubing 900 mm

18 Gauge Dispense Tubing 900 mm

  • 18 Gauge Dispense Tubing 900 mm

  • PartNo: 240130

  • Qty/pkg: 1

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

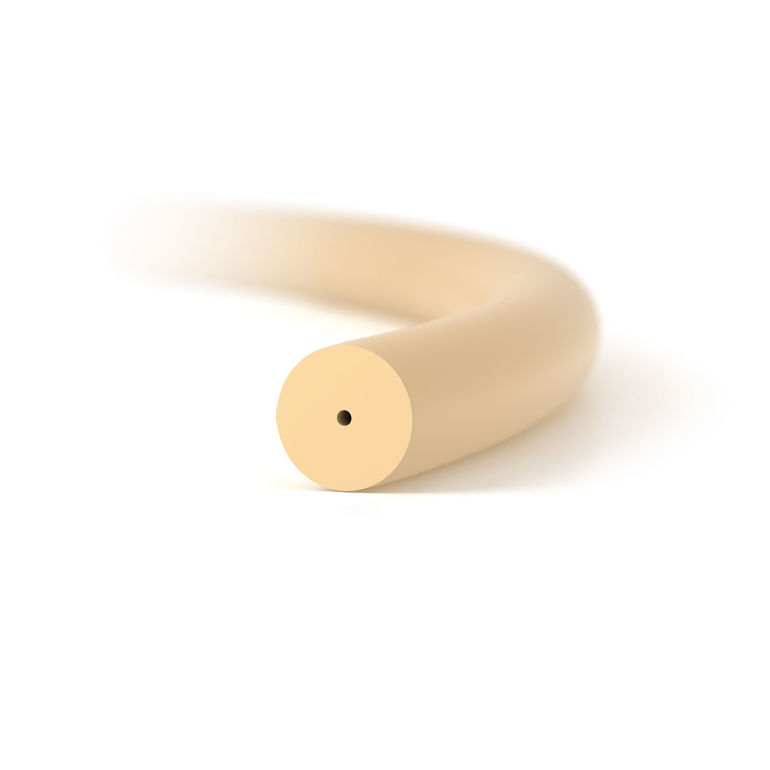

PTFE tubing for ML500 valves with M6 threads. The Microlab 500 tubing assemblies are manufactured using thick walled FEP tubing. The thick walled tubing is desirable because it resists kinking during the rigors of the workday. The tubing comes in two different sizes 12 gauge and 18 gauge. The 12 gauge tubing has a larger inner diameter and should be used with syringe sizes larger than 2.5 mL or with viscous liquids. The dispense tubing is used to connect from the valve to the hand probe. It is tapered at one end to minimize contamination from one sample to the next. The Fill tubing is used to connect between the valve and the reagent reservoir and comes with a blunt tip. Tubes are pre-cut to 650 mm for fill tubing and 900 mm for dispense tubing. Custom length part numbers are available and can generally be shipped within 7-10 business days.
  • SPECIFICATION
  • Manufacturer
    Hamilton
  • Delivery Time
    7
  • Stock Type
    Beställningsvara
  • Product Type
    Tubing
  • Used with Syringe Volumes
    Less than or equal to 1 mL
  • Type of Tubing
    Dispense
  • Tubing Point
    Tapered
  • Electrical Connection
    No
  • Tubing Material
    PTFE
  • Gauge
    18 gauge
  • Tubing Threads
    M6 or 1/4-28
  • Tubing Length
    900 mm (3 ft)
  • Tubing Volume
    702 µl
  • Upstream Cable Connector
    No
  • Downstream Cable Connector
    No
  • Instrument Manufacturer
    Hamilton
  • Instrument Model
    Microlab 500 A, Microlab 500 B, Microlab 500 C
  • UNSPSC Code
    No
  • Tariff Code
    No
