OPTI-PAK Trap Column, C18, x

OPTI-PAK Trap Column, C18, x

  • OPTI-PAK, 0.12µl, C18AQ, 5/pk

  • PartNo: 10-03328-TB

  • Qty/pkg: 5

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

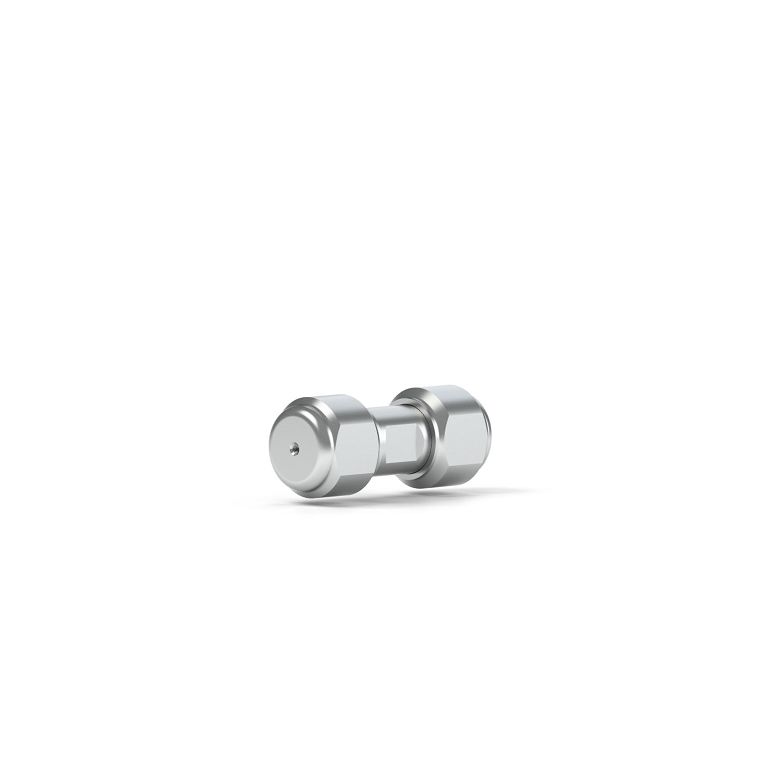

The OPTI-PAK's unique hardware design integrates a PEEK holder with an auto-adjusting stem which provides a fluid interface with any 10-32 standard injector port, and guarantees a zero-dead-volume connection despite variances in tube stop depth. A proprietary method of frit placement allows the packed stem to be positioned directly into the flow path, which eliminates all excess swept volume. Less swept volume translates to absolute minimum sample dilution and dispersion. The elegant, flexible design of OPTI-PAK® makes it amenable to virtually any trapping application. Installing an OPTI-PAK® into the outlet of a switching valve will facilitate the trapping, desalting, and pre-concentration of an analyte mixture. With Opti-Paks versatility, a second trap can be added downstream in the loop of an injection valve and effectively perform a 2D separation.

Key Features

- Includes 5 disposable 10-32 hand-tight holders and custom packed cartridges
- Specially designed for use in todays low volume trapping applications
- Packed stem is positioned directly in flow path
- Absolute minimum sample dilution and dispersion
- Auto adjusting ZDV connection
- Amenable to any trapping technique
- Can be installed side-by-side in same valve stator without interference
  • SPECIFICATION
  • Manufacturer
    Optimize Technologies
  • Delivery Time
    10
  • Stock Type
    Beställningsvara
  • Length
    No
  • ID
    No
  • Particle Size
    No
  • Pore Size
    No
  • Phase
    C18
  • Phase 2
    No
  • Phase Name
    C18
  • Base Material
    No
  • Column Type
    Trap Column
  • Particle Type
    No
  • Carbon Load
    No
  • pH-Range Low
    No
  • pH-Range High
    No
  • Endcapping
    No
  • Separation Mode
    No
  • Max. Pressure
    No
  • Max. Temp
    N/A
  • Surface Area
    No
  • USP
    No
  • UNSPSC Code
    No
  • Tariff Code
    90279000
  • Brand
    OPTI-PAK
  • Product Type
    HPLC Column
