EXP Trap Cartridge, CN, 5 µm, 5 mm x 1.5 mm

EXP Trap Cartridge, CN, 5 µm, 5 mm x 1.5 mm

  • EXP Trap Cartridge, 1.5mm x 5mm, 5.0µm HALO, ES-CN, 3/pk

  • PartNo: 15-03969-HU

  • Qty/pkg: 3

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

The patent-pending Hand-Tight EXP® Trap Column is rated for use at 20,000+ psi (1,400+ bar). This unique design connects directly to any injection valve (with 10-32 threads) or in-line with 1/16” stainless tubing for unparalleled convenience and efficiency. The EXP® Cartridge System enables chemists to quickly remove detergents or salts which can affect the ionization process in MS work. This trapping technique can concentrate the sample directly on-line, allowing for increased recovery of precious sample material compared to off-line techniques. On-line trapping readily lends itself to automation for high-throughput analysis in UHPLC/MS applications. Free-Turn® architecture allows the user to change cartridges by hand without breaking fluid connections on the holder inlet/outlet.

Key Features

- Includes 3 uni-directional cartridges
- Rated to 20000+ psi (1400+ bar)
- Bed volumes from 4 µL to 100 µL
- Convenient means of handling a variety of sample clean-up and enrichment processes
- More efficient than off-line trapping techniques
- Hand-tight trap replacement - NO TOOLS!
- Custom packing available
  • SPECIFICATION
  • Manufacturer
    Optimize Technologies
  • Delivery Time
    10
  • Stock Type
    Beställningsvara
  • Length
    5 mm
  • ID
    1.5 mm
  • Particle Size
    5 µm
  • Pore Size
    No
  • Phase
    CN
  • Phase 2
    No
  • Phase Name
    CN
  • Base Material
    No
  • Column Type
    Trap Cartridge
  • Particle Type
    No
  • Carbon Load
    No
  • pH-Range Low
    No
  • pH-Range High
    No
  • Endcapping
    No
  • Separation Mode
    No
  • Max. Pressure
    1400 bar (20 000 psi)
  • Max. Temp
    N/A
  • Surface Area
    No
  • USP
    No
  • UNSPSC Code
    No
  • Tariff Code
    90279000
  • Brand
    EXP
  • Product Type
    HPLC Column
Optimize - EXP Product Family
Application Note 101 - Trapping -a general guide
Optimize - HPLC, UHPLC & LC/MS products
Optimize - LC Trapping Guide & Products
Related Products
EXP Holder - In-Line, x
PartNo 15-02-03946 Order Item
EXP Holder - Guard Cartridge, x
PartNo 15-02-03956 Order Item
New Products
YMC-Triart Guard Cartridge, C8, 5 µm, 20 mm x 3.0 mm
PartNo TO12S05-0203GC Order Item

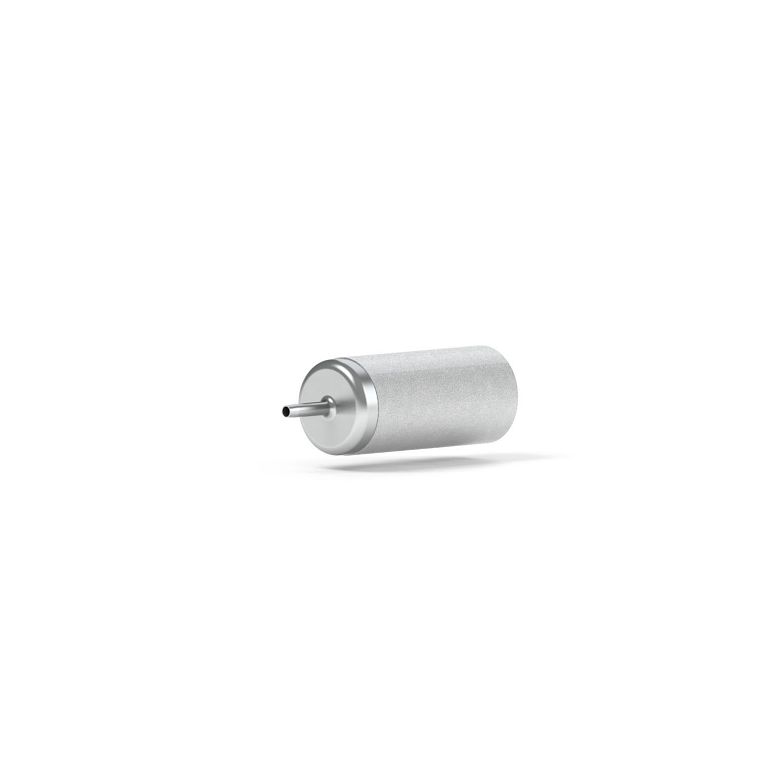

Bottom-of-the Bottle™ Solvent Filter Assembly 10µm, for 1/16'' OD
PartNo A-309 Order Item
ECO Glass Column, SR, 10 mm ID, 880-1000 mm, 75-78 ml, 30 bar, 16-40 µm
PartNo ECO10/999V3K
Ready for Delivery

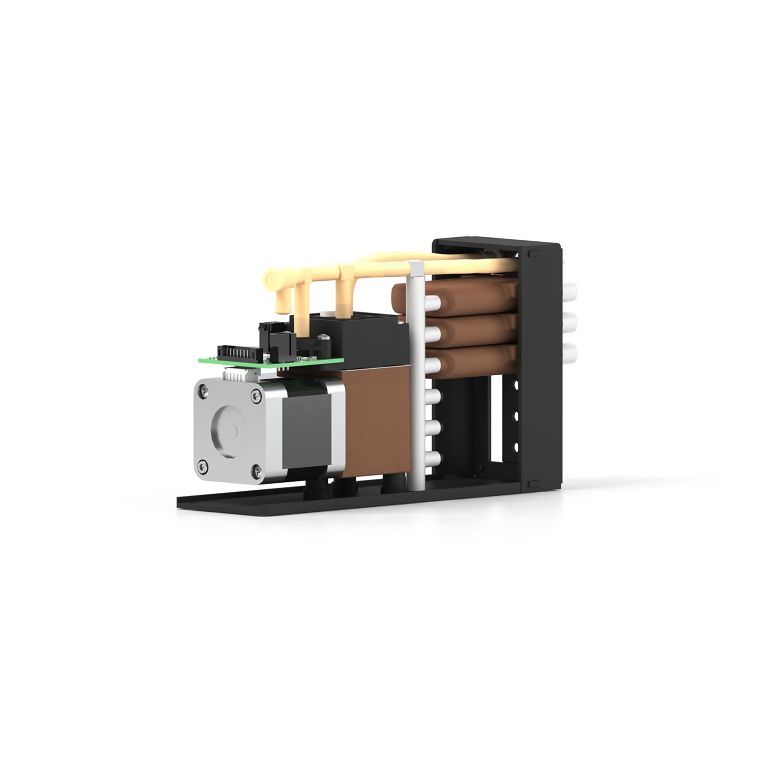

3 Channel OEM Mini Lite Degasser
