EXP Stem Trap Kit, C18, x

EXP Stem Trap Kit, C18, x

  • EXP Stem Trap Kit, 0.68µl, HALO C18

  • PartNo: 15-04009-HA

  • Qty/pkg: 1

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

The entire EXP® Stem Trap and reusable holder are only slightly larger than a standard HPLC fitting. Its slim architecture allows it to easily fit into crowded instrument compartments or to connect directly to tightly-spaced injection ports. When tightened by hand, the EXP® Stem Trap seals to 8,700+ psi. All configurations incorporate wrench-flats to enable flawless sealing to 20,000+ psi (1,400+ bar). The unique packed floating stem installs directly into any 10-32 port and automatically adjusts to provide a perfect ZDV connection. The EXP® System enables chemists to quickly remove detergents or salts which can affect the ionization process in MS work. This trapping technique can concentrate the sample directly on-line, allowing for increased recovery of precious sample material compared to off-line techniques. On-line trapping readily lends itself to automation for high-throughput analysis in UHPLC/MS applications.

Key Features

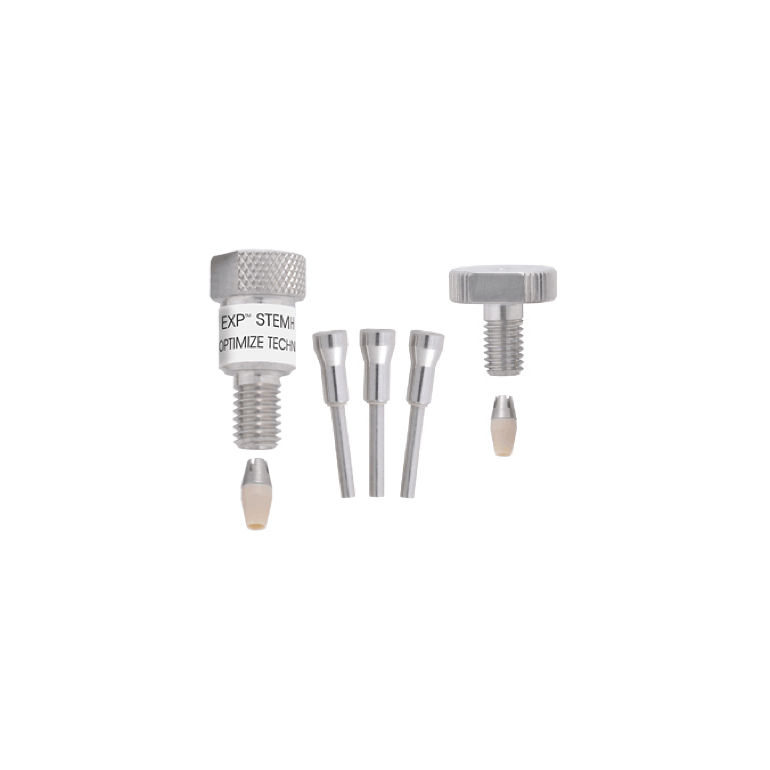

- Kit includes EXP® Stem Holder with fittings and 3 EXP® Stem Traps
- Rated to 20,000+ psi (1,400+ bar)
- Hand-tight and wrench-tight configuration
- Intended for many repeat uses
- Auto-adjusting ZDV connection
- Bed volumes from 0.17 µL to 2.6 µL
- Low-volume/low-dispersion cartridges
- Custom packing available
  • SPECIFICATION
  • Manufacturer
    Optimize Technologies
  • Delivery Time
    10
  • Stock Type
    Beställningsvara
  • Length
    No
  • ID
    No
  • Particle Size
    No
  • Pore Size
    No
  • Phase
    C18
  • Phase 2
    No
  • Phase Name
    C18
  • Base Material
    No
  • Column Type
    Stem Trap Kit
  • Particle Type
    No
  • Carbon Load
    No
  • pH-Range Low
    No
  • pH-Range High
    No
  • Endcapping
    No
  • Separation Mode
    No
  • Max. Pressure
    1400 bar (20 000 psi)
  • Max. Temp
    N/A
  • Surface Area
    No
  • USP
    No
  • UNSPSC Code
    No
  • Tariff Code
    90279000
  • Brand
    EXP
  • Product Type
    HPLC Column
