EXP Guard Cartridge, Penta-HILIC, 3 µm, 5 mm x 4.6 mm

EXP Guard Cartridge, Penta-HILIC, 3 µm, 5 mm x 4.6 mm

  • EXP Guard Column Cartridge, 4.6mm x 5mm, Penta-HILIC 3µm, 3/pk

  • PartNo: 15-04108-HV

  • Qty/pkg: 3

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

The EXP® Guard Column cartridge system is rated to 15,000 psi with hand-tight replaceable cartridges. This unique design connects directly to any UHPLC column with the auto-adjusting Titanium Hybrid Ferrule and EXP® Fittings, providing repeated zero-dead-volume connections and easy adjustability between various column types. Free-Turn¨ architecture allows the user to change cartridges by hand without breaking fluid connections on the holder inlet/ outlet. The combination of low-dispersion and ultra high-pressure capabilities provides effective protection with negligible effects on retention time, plate count, and peak shape. For use with EXP® Direct Connect Holder 15-02-03965.

Key Features

- Includes 3 uni-directional cartridges
- Rated for routine use at 15,000 psi (1,000 bar)
- 1.4 uL Swept Volume (excluding packed bed)
- Low-volume/ low-dispersion cartridges
- Provides effective protection with negligible effects
- Hand-tight guard replacement = NO TOOLS!
- Custom packing available
  • SPECIFICATION
  • Manufacturer
    Optimize Technologies
  • Delivery Time
    10
  • Stock Type
    Beställningsvara
  • Length
    5 mm
  • ID
    4.6 mm
  • Particle Size
    3 µm
  • Pore Size
    No
  • Phase
    Penta-HILIC
  • Phase 2
    No
  • Phase Name
    Penta-HILIC
  • Base Material
    No
  • Column Type
    Guard Cartridge
  • Particle Type
    No
  • Carbon Load
    No
  • pH-Range Low
    No
  • pH-Range High
    No
  • Endcapping
    No
  • Separation Mode
    No
  • Max. Pressure
    1000 bar (15 000 psi)
  • Max. Temp
    N/A
  • Surface Area
    No
  • USP
    No
  • UNSPSC Code
    No
  • Tariff Code
    90279000
  • Brand
    EXP
  • Product Type
    HPLC Column
Optimize - EXP Product Family
Optimize - HPLC, UHPLC & LC/MS products
YMC Guard Cartridge column - Care and Use
Related Products
EXP Holder - Guard Cartridge, x
PartNo 15-02-03956 Order Item
New Products

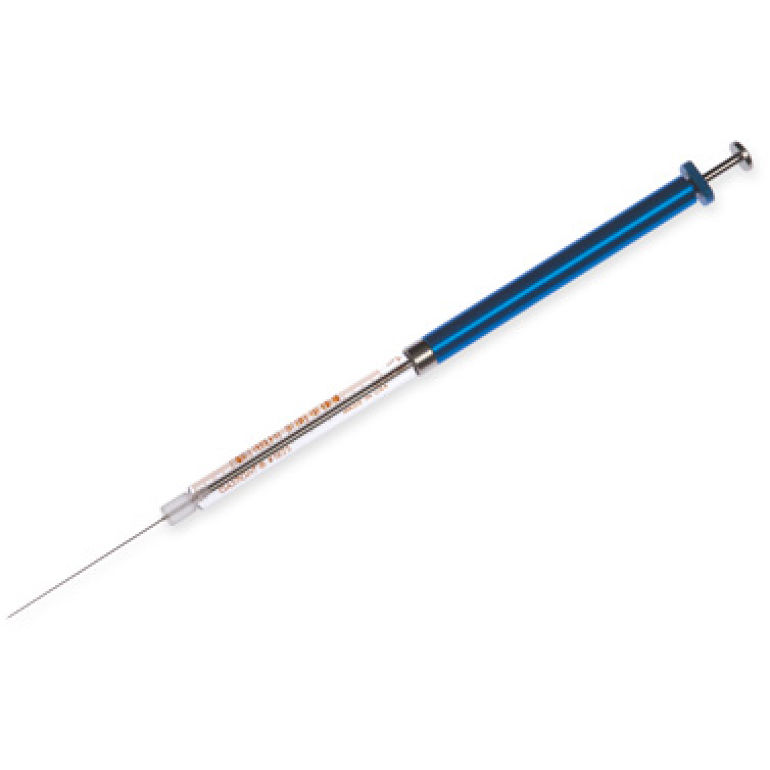

Manual GC Injection|Standard Injection Syringe 250 µl Cemented Needle (N) PST 2
