ECO Glass Column, SR, 25 mm ID, 0-200 mm, 0-100 ml, 15 bar, 40-100 µm

ECO Glass Column, SR, 25 mm ID, 0-200 mm, 0-100 ml, 15 bar, 40-100 µm

  • ECO glass column, SR-version, type 2 long pistons (Multivario), 25 mm ID, 0-200 mm bed length, 0-100 ml volume, 15 bar pressure limit, 40-100 µm frit porosity

  • PartNo: ECO25/200M4K

  • Qty/pkg: 1

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

YMC Glass Columns
Biochromatography is widely used for highperformance downstream processing techniques for a wide range of compounds, including proteins, peptides or nucleic acids. When using various chromatographic techniques such as ion exchange, affinity or gel permeation chromatography, high-performance separation media are increasingly used and, as a result, higher demands are made on the quality of the column hardware.

Laboratory Scale:
ECO and ECOPlus Glass Columns

ECO columns are glass columns for use with almost all types of soft gels and medium pressure liquid chromatography applications. A heating/cooling jacket option can be supplied on request.
• First choice for medium pressure liquid chromatography (MPLC)
• Pressure limit 5–30 bar
• Heating/cooling jacket available
• 70 and 80 mm ID columns with column stands available
• Compatible with any LC system
• For all types of silica and soft gels
• Aqueous buffers and solvents
• Temperature range 4–40°C
• Easy self-packing

ECO columns are glass columns suitable for all types of soft gel and medium pressure (pressure limit 5 – 30 bar) liquid chromatography applications. With a choice of one or two adjustable length pistons, they are available in two versions: AB (aqueous buffer) for use with aqueous buffers and cold room applications and SR (solvent resistant) for all forms of normal and reversed phase chromatography. ECO columns are produced using high-precision CNC manufacturing. They are competitively priced and equipped with a screw-lock system which makes it possible to open and seal the column simply and quickly. Each column passes a quality control pressure test. A water-jacketed option can be supplied on request.

What is the difference between Vario and Multivario options?
Adjustable and non-adjustable (fixed) pistons are available for the ECO columns.
Two different options are available for combining these two pistons:
1. Vario: One adjustable and one fixed piston
2. Multivario: Two adjustable pistons
The selection of the option depends on the required ranges of bed lengths and column volumes.
  • SPECIFICATION
  • Manufacturer
    YMC
  • Delivery Time
    7-21
  • Stock Type
    Beställningsvara
  • Brand
    YMC ECO
  • Internal Diameter
    25 mm
  • Bed length
    0-200 mm
  • Lenght (Max)
    200 mm
  • Volume
    0-100 ml
  • Frit Porosity
    40-100 µm
  • Pistons
    2 long pistons (Multivario)
  • Version
    SR (Solvent Resistent)
  • Heating/Cooling Jacket
    No
  • Temperature range (°C)
    No
  • Pressure Limit
    15 bar
  • Wetted parts
    PVDF pistons, glass frits, Kalrez® O-ring, borosilicate glass body
  • Material
    Glass
  • O-ring Material
    Kalrez®
  • Piston Material
    PVDF
  • Connections
    The columns are supplied with different adapters to allow direct connection to any LC-system (e.g. ÄKTA sytem)
  • Height adjustment
    Multi-variable plunger at each end, each providing approximately 60mm bed height adjustment with “Quick-Lock” bayonet system (long plunger option provides approximately 120mm bed adjustment for either or both ends)
Manual ECO
Glass Column Overview
New Products
YMC CHIRAL ART Cellulose-SB HPLC Column, Immobilised Cellulose, 3 µm, 100 mm x 4.6 mm
PartNo KSB99S03-1046WT Order Item
Plunger Support and Reproducibility Devices|Built-In Chaney Adapter Syringe 10 ml Cemented Needle (N) PST 2
PartNo 81618 Order Item
YMC-Pack Diol SEC Semi-preparative Column, Diol, 10 µm, 500 mm x 20.0 mm
PartNo DLG12S11-5020WT Order Item

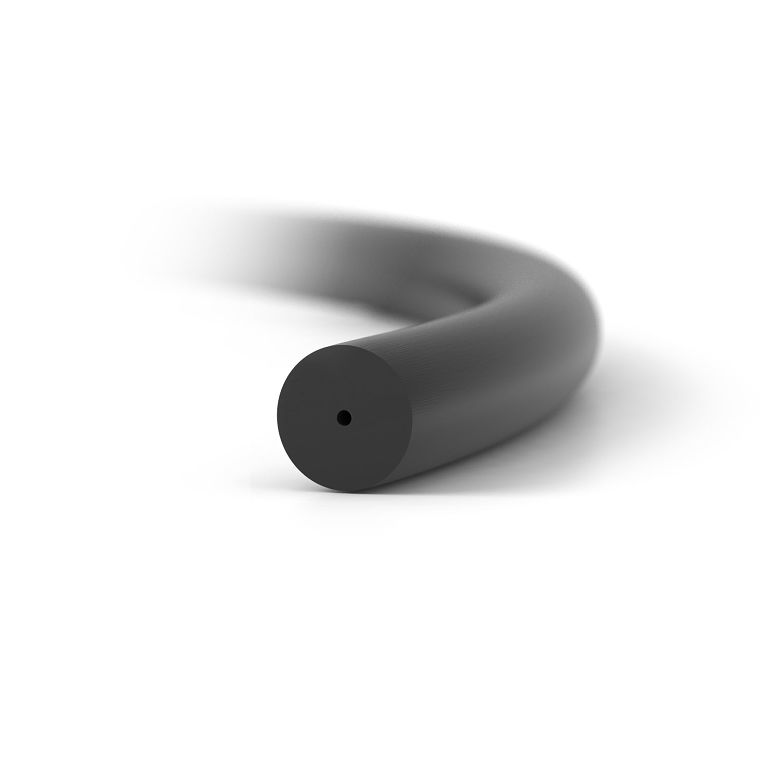

IDEX Tygon® LMT-55 2-Stop Tubing
