Ultra High Pressure - Cross, PEEK/Stainless Steel, Coned - 5/16-24

Ultra High Pressure - Cross, PEEK/Stainless Steel, Coned - 5/16-24

  • MicroCross Assembly for 360µm OD

  • PartNo: UH-752

  • Qty/pkg: 1

Add to Wishlist

Add to Compare

You must be approved by Genetec to use this function.

Order Item

Our VHP MicroCross Assembly's unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use. It is for 360µm OD tubing and has a thread of 5/16-24 Coned. It comes with (4) PK-152 and (4)P-416BLK Fittings.
  • SPECIFICATION
  • Manufacturer
    IDEX
  • Delivery Time
    14
  • Stock Type
    Beställningsvara
  • Brand
    UpChurch
  • Connector Type
    Ultra High Pressure - Cross
  • Thread Port Configuration
    Coned - 5/16-24
  • Thread to Thread
    No
  • Luer to Thread
    No
  • Material
    PEEK/Stainless Steel
  • Color
    No
  • Head Style
    No
  • For Tubing OD
    360 µm
  • Volume
    101.0 nL
  • Thru Hole (In)
    0.010
  • Thru Hole (mm)
    0.25
  • Swept Volume
    No
  • Pressure Rating Max
    1034 bar (15000 psi)
  • UNSPSC Code
    No
  • Tariff Code
    No
IDEX - Connectors
IDEX - Health & Science Catalog - Instrument Manufacturers
IDEX - Health & Science Catalog - Laboratory Applications
IDEX - The Application of High-Pressure Connectors in UHPLC
IDEX - Technical Resources
IDEX - Microfluidic Connections
IDEX - The Application of High-Pressure Connectors in UHPLC
New Products
NUCLEOSIL HPLC Column, C18, 5 µm, 250 mm x 4.0 mm
PartNo 720014.40 Order Item
YMC-Pack Cartridge Column, C18, 5 µm, 125 mm x 2.1 mm
PartNo AA12S05-R5Q1QC Order Item
YMC CHIRAL ART Cellulose-SZ HPLC Column, Immobilised Cellulose, 3 µm, 250 mm x 2.0 mm
PartNo KSZ99S03-2502WT Order Item

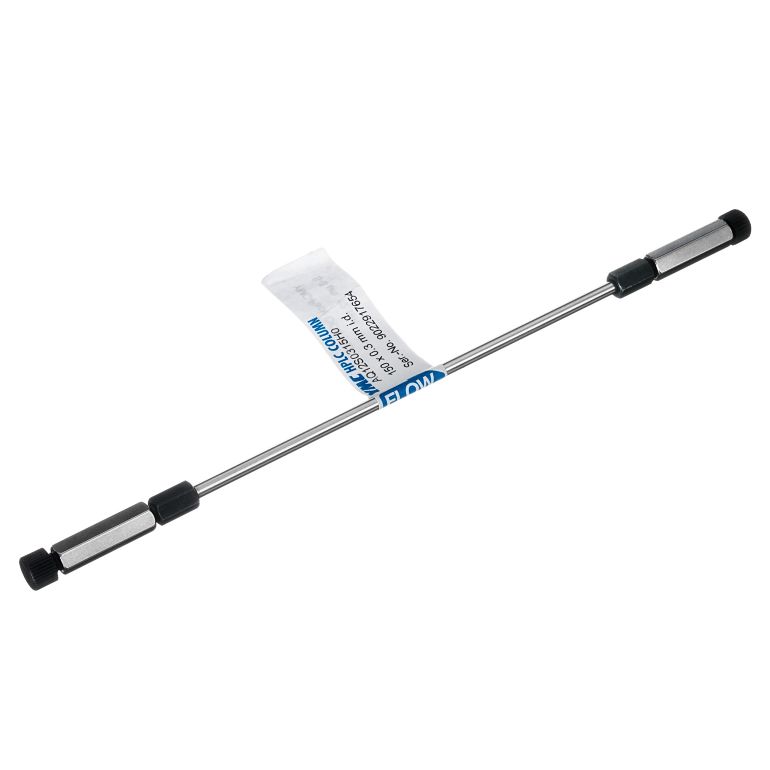

YMC-Pack Pro Capillary Column, C18, 3 µm, 50 mm x 500 µm
